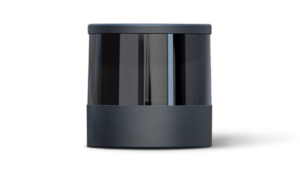

QT128 128-Channel Ultra-Wide View Short-Range Lidar

Key Specifications

Vertical FOV

105.2° (-52.6° ~ +52.6°)

Horizontal FOV

360°

Vertical Resolution

Finest at 0.4°

Horizontal Resolution

Finest at 0.4°@10 Hz

Range

0.05 ~ 50 m

Range Capability

20 m @10% reflectivity

Range Accuracy

±3 cm

Range Precision

2 cm

Working Temperature

-40°C ~ 85°C

Point Rate

864,000 pts/s

Power Consumption

12 W

Size (Top / Bottom x Height)

Φ85.9 mm × Φ87.00 mm x H83.9 mm

Designed for Automotive-Grade and Mass-Produced

More than 50 design validation (DV) tests, conducted according to internationally recognized OEM standards such as electrical, mechanical, climatic, sealing, material, and EMC tests.

UV Aging

IP6KX Dust Resistance

High-Temperature Operation

Low-Temperature Wakeup

Humid Heat Cyclic

Mechanical Shock

Salt Spray

IPX7&IPX9K Water Resistance

Thermal Shock with Water Splash

Vibration with Thermal Cycling

High-Quality Reflectivity

Provides accurate reflectivity information to enhance object recognition

Light and Compact

83 mm tall, 700 g in weight

Road Test

QT128 provides comprehensive blind spot coverage. Cars, pedestrians, and small animals at extremely close range can still be clearly detected.

QT128
