JT16 Mini 360° x 40° 3D Lidar

JT16

Mini 360° x 40° 3D Lidar

Designed for Robotics and Industrial Applications

Miniature Size, Versatile Functionality

JT16 is a mini 3D lidar, designed for robotics and industrial applications. It has an ultra-compact size that is 70% smaller in volume than similar products, enabling flexible and seamless installation. With a 360° x 40° field of view, the JT16 elevates perception from 2D to 3D, empowering a broader range of robotics and industrial applications.

Short-Range Lidar

JT16

DOWNLOADS

*The appearance of products published on this website may vary due to screen display settings, production batches, and customization. Please refer to the actual sample/product; The product specifications shown on this website are typical values under specific test conditions and may slightly vary due to production batches, firmware and hardware versions, as well as application conditions. Please refer to final factory inspection. For product certification information, please refer to official certifications. Hesai reserves the right of final interpretation of the information on this website. *Please read the relevant safety precautions before using the product.

30 m @10% reflectivity
[100 m Max]

Ranging Capability

360° x 40°

Field of View

0.6° (H) x 2.67° (V)

Angular Resolution

4.3 W

Power Consumption

5 Hz; 10 Hz

Scanning frequency

Φ55 x H64 mm

Dimensions

<200 g

Weight

Built inside

IMU

UV Aging

High-Temperature

IP6K7 & IP6K9K

Mechanical
Shock

Salt Spray

Thermal Shock
with Water Splash

Low-Temperature
Wakeup

Humid Heat
Cyclic

Vibration
with Thermal
Cycling

Electrical & Electronic Test

CONTACT SALES

Compact and Lightweight

JT16's small form factor enables seamless, embedded installation, with an exposed window height of just over 20 mm.

True 3D perception

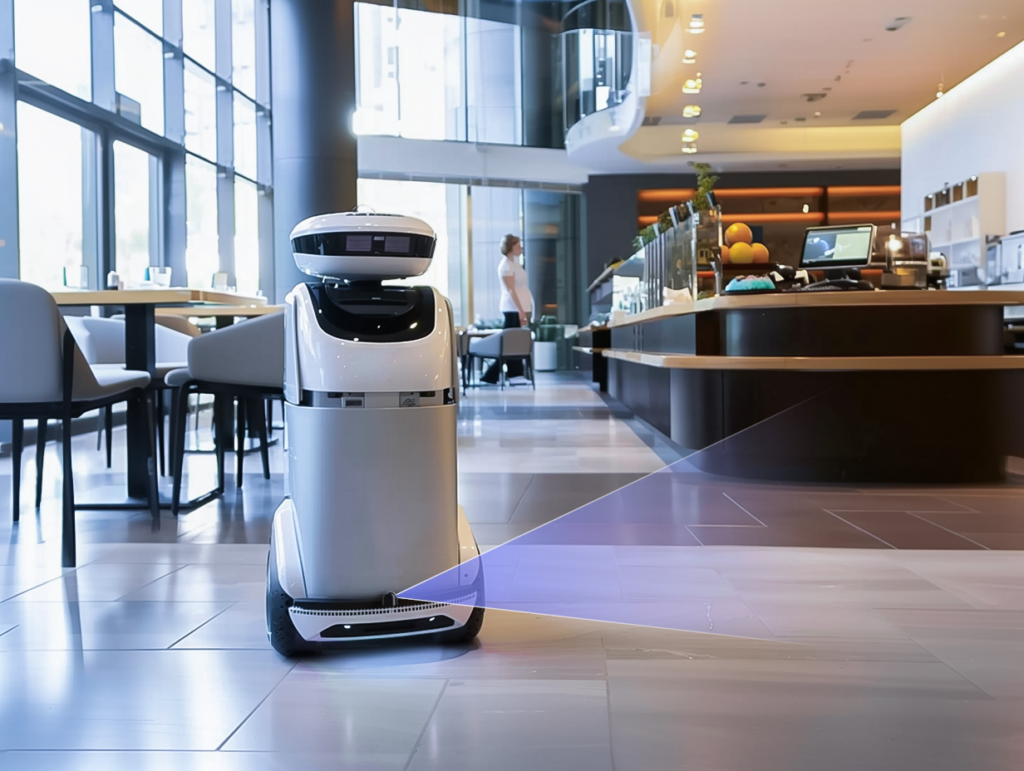

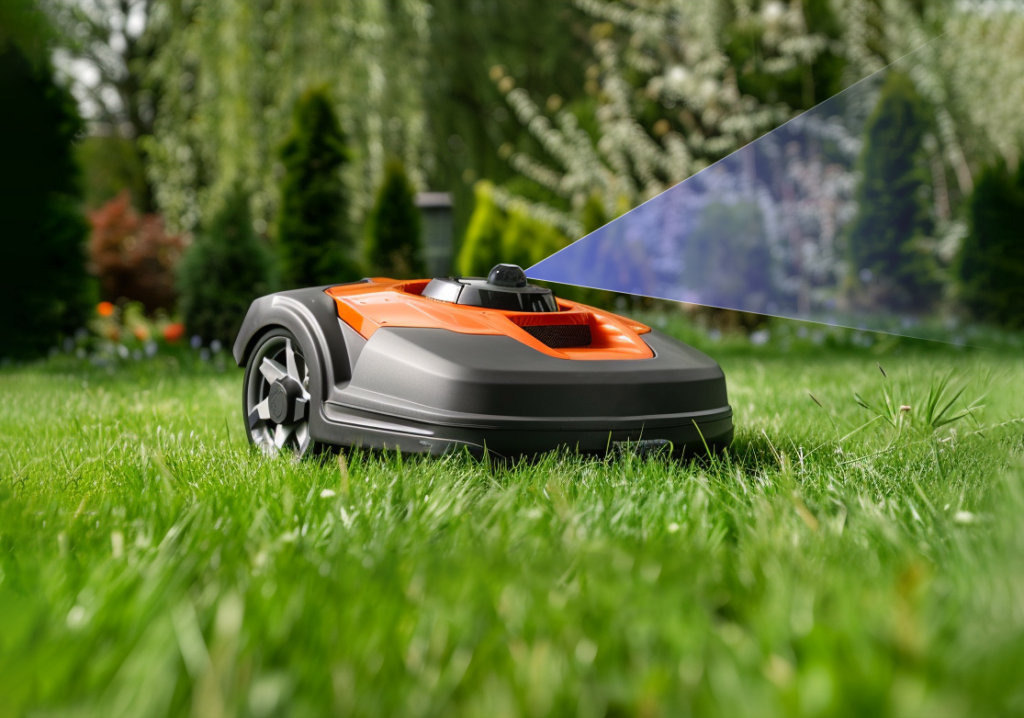

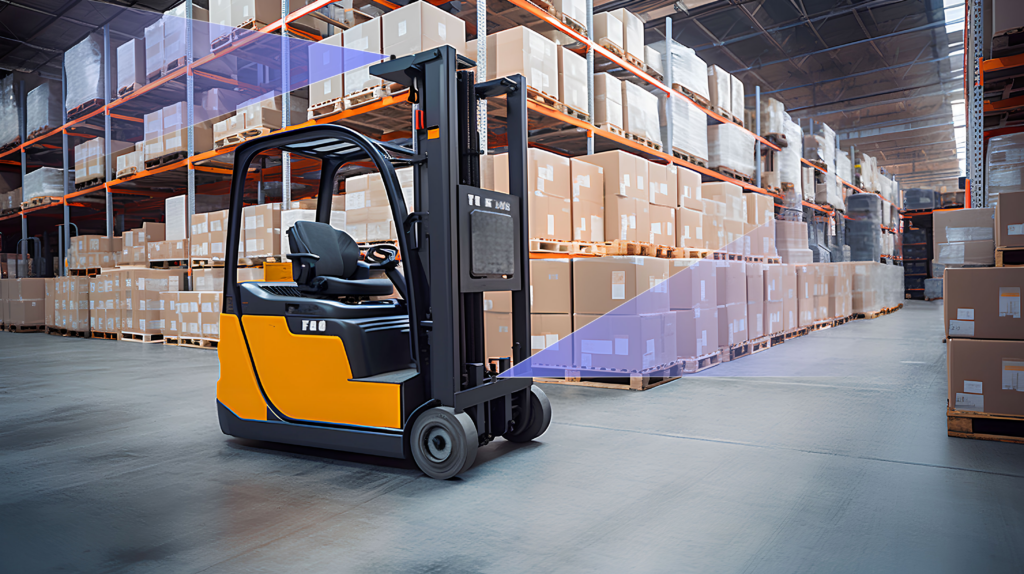

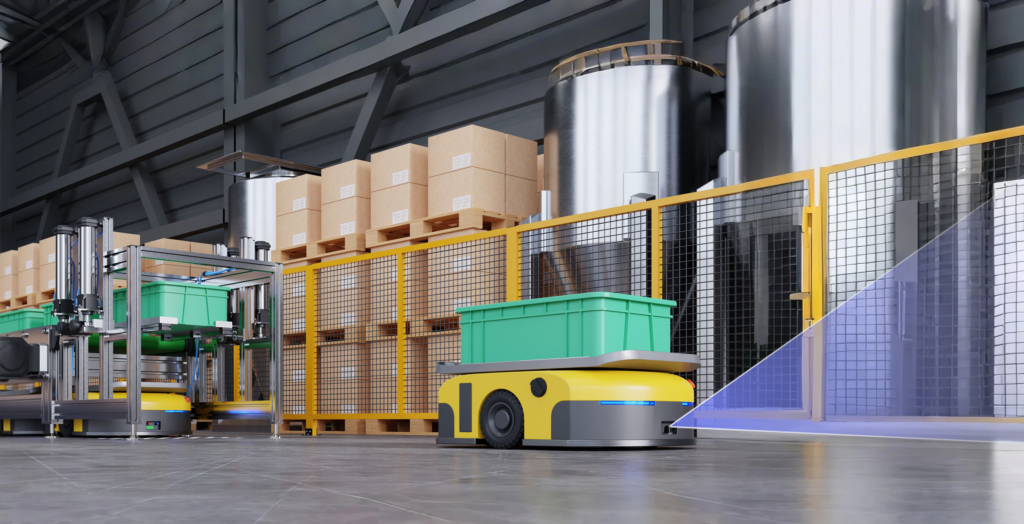

The JT16 features a wide 360° x 40° field of view. Compared to traditional 2D lidar's planar perception, the JT16 provides 3D perception for robots and industrial equipments, enabling various functions such as navigation and obstacle avoidance.

100-Meter Effective Ranging Capability

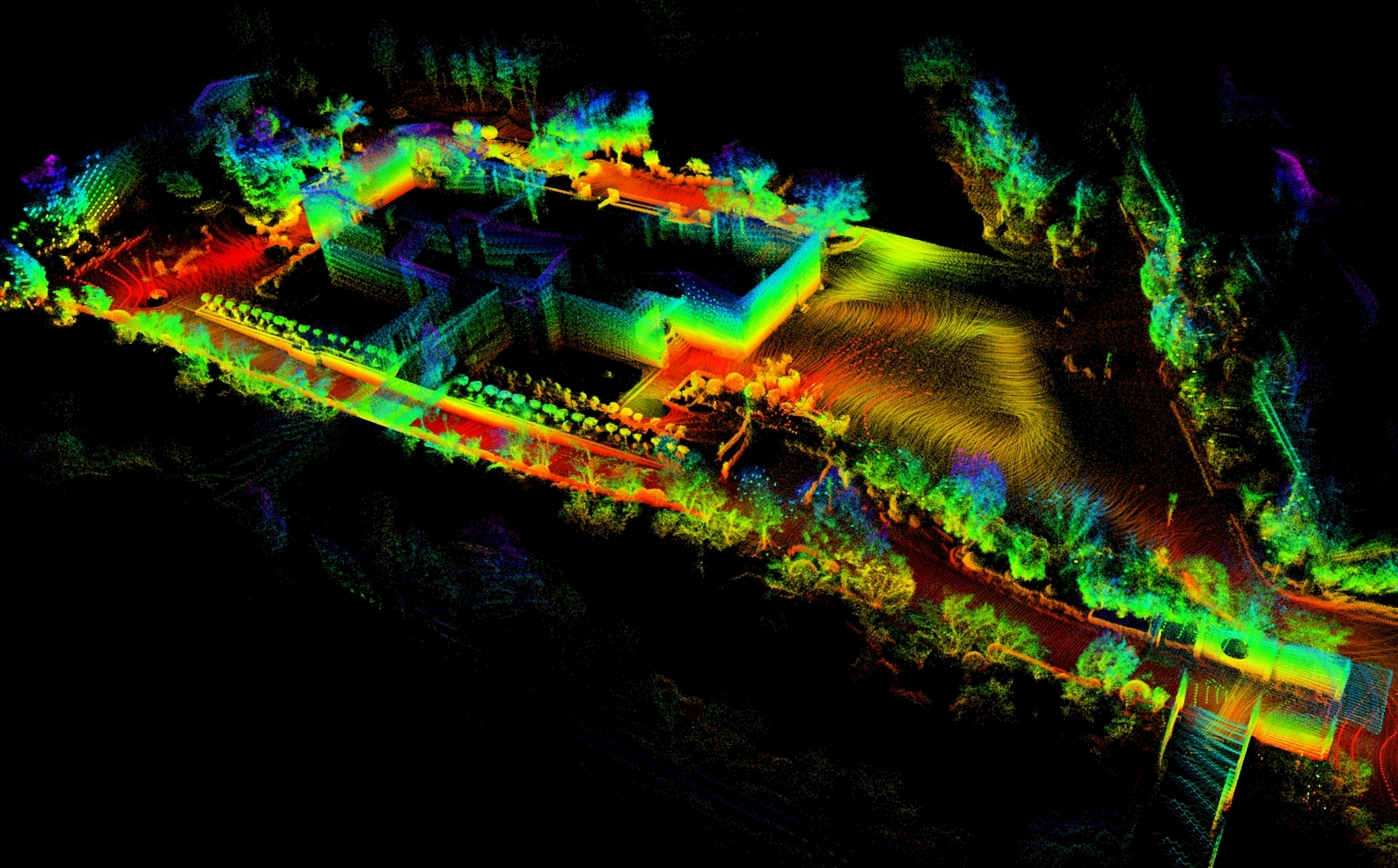

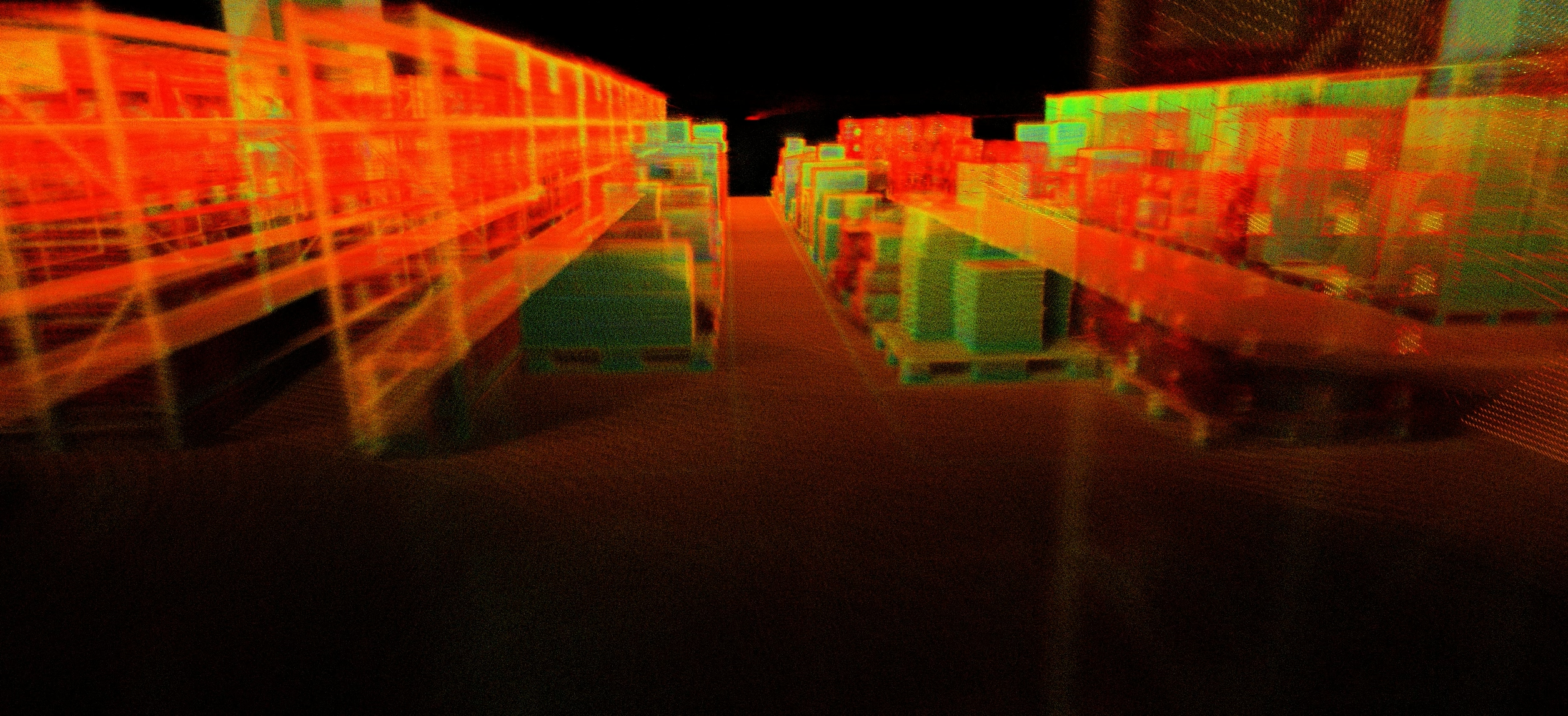

The JT16 can scan a space with a diameter of 200 meters in a single frame, covering a ground detection area of 30,000 square meters—equivalent to four international standard football fields. Through mobile scanning, it efficiently performs SLAM of the surrounding environment, providing robots and industrial equipment with precise localization and navigation.

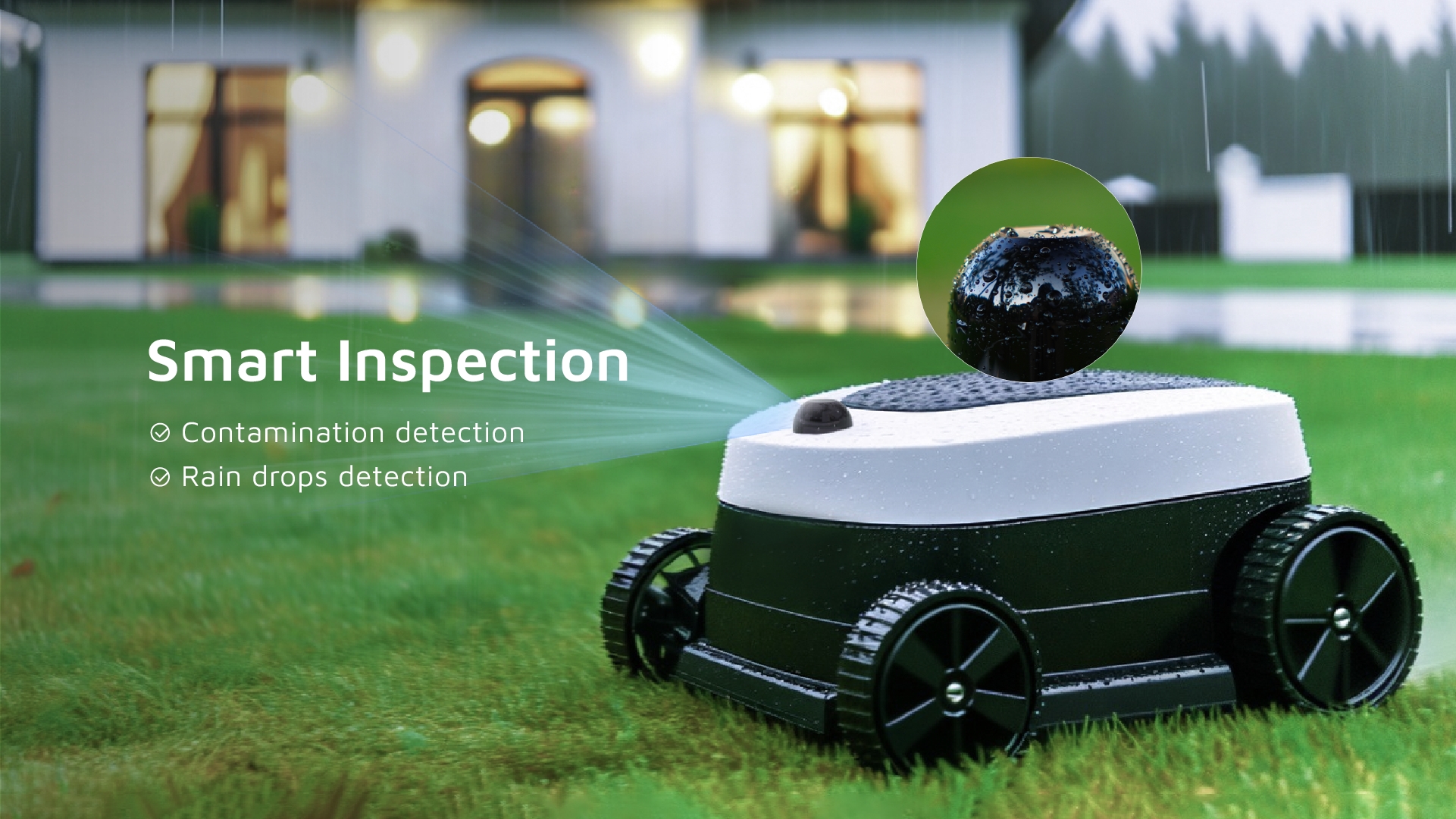

Smart Inspection and Noise Filtering

The JT’s built-in waveform processing technology enables smart inspection for cover lens contamination and filters out 99.9% of rain and fog noise, meeting the demands for all-weather perception across various scenarios and significantly expanding the product's applications.
